Mitsubishi Electric Corporation To Launch Contact Image Sensors (CISs) In New KD-CXF Series

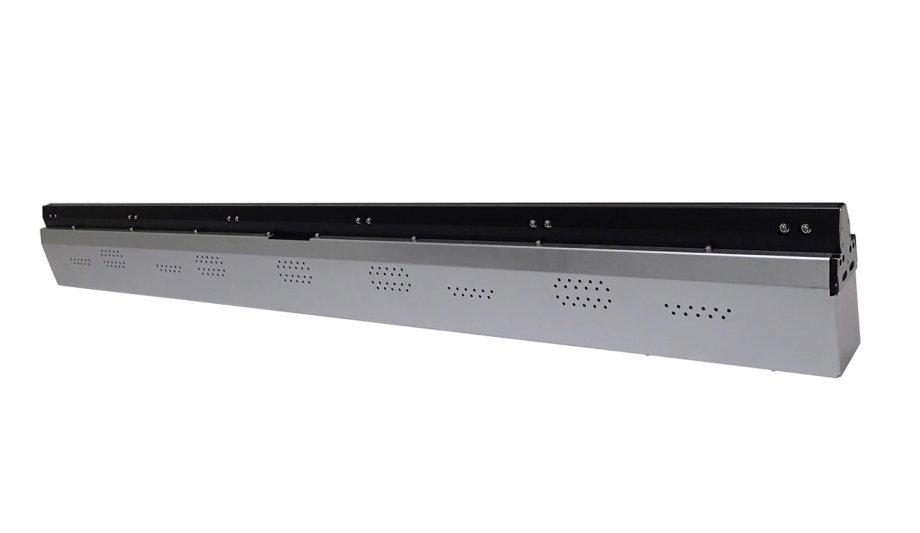

Mitsubishi Electric Corporation has announced that its new KD-CXF series of contact image sensors (CISs) equipped with the industry’s deepest depth of field will launch in December 2022, beginning with the KD6R1064CXF-NL model.

Contact image sensors (CISs) are widely used in manufacturing to inspect product surfaces for scratches, dirt, mis-coloring or mis-positioning of printed labels, plastic film, etc.

Contact image sensors (CISs)

Mitsubishi Electric’s CIS lineup comprises compactly designed models for space-saving installations

Mitsubishi Electric’s CIS lineup comprises compactly designed models for space-saving installations that eliminate the need to change production line layouts at points where inspections are most required, thus significantly minimizing installation costs.

Also, the image sensor, lens, etc. are built into the CIS unit, eliminating the need for complicated installations and optical adjustments, thereby minimizing maintenance and servicing costs.

Overcoming the limitation of a shallow depth of field

Until now, the limitation of a shallow depth of field has made it difficult for CIS units to clearly focus on and accurately inspect objects that have significant surface irregularities or if they are subjected to strong vibration, while moving down a production line.

The company’s existing CIS models are only used to inspect objects with flat surfaces, such as paper and film, and objects not subjected to vibration during inspection.

KD6R1064CXF-NL model

The KD6R1064CXF-NL model being launched in the new KD series combines an Erecting equal-magnification lens array (rod lens array) with unique optical components to improve the depth of field to ±1.8mm, which is more than 3.6 times that of existing products. Image reading is clear, even if the object has significant surface irregularities or vibrates.

Manufacturing sites are facing increasing market demands for quality, while also having to meet needs for labor-saving and automation due to rising labor costs and declining workforces in certain markets.

Reducing the costs to install and service inspection equipment

Moreover, manufacturers are looking for ways to reduce the costs of installing, maintaining and servicing inspection equipment. Mitsubishi Electric Corporation’s new KD-CXF series of CISs will help to satisfy such demands.
