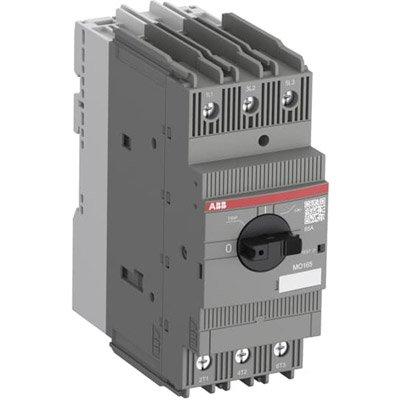

ABB MO165-20 Manual Motor Starter

Technical Specification

Features:

Make: ABB
Model code: MO165-20
Series: MO165
Rated current: 20 A
No. of Phases: 1, 3

Additional info:

An electromechanical protection device for the main circuit mainly used to switch motors manually ON/OFF and protect them fuseless against short-circuits Disconnect function Temperature compensation from -25 … +60 °C Suitable for three- and single-phase applications Trip-free mechanism Clear switch position indication ON/OFF/TRIP Lockable handle

Contact manufacturer Contact manufacturer Datasheet Datasheet

Make	ABB
Manufacturer	ABB
Category	Motors and Electrical Equipment>Motor starters
Model code	MO165-20
Series	MO165
Rated current	20 A
No. of Phases	1, 3
Power rating	1.5 / 3 / 5 / 10 / 15 HP
Rated Voltage	690 V AC / 250 V DC
Protection	IP20 / IP10
Standard	IEC/EN, UL, CSA
Weight	0.95 Kg
Height	142.65 mm
Width	55 mm
Depth	122.1 mm
Operating Temperature	-25 ~ 60 °C
Additional info	An electromechanical protection device for the main circuit mainly used to switch motors manually ON/OFF and protect them fuseless against short-circuits Disconnect function Temperature compensation from -25 … +60 °C Suitable for three- and single-phase applications Trip-free mechanism Clear switch position indication ON/OFF/TRIP Lockable handle
