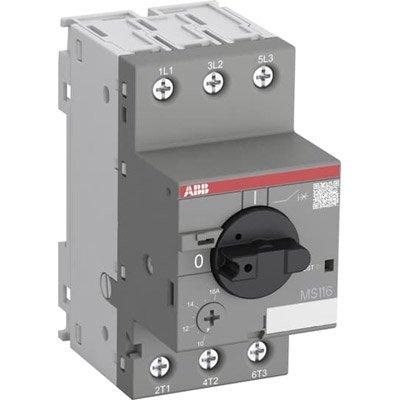

ABB MS116-32 Manual Motor Starter

Technical Specification

Features:

Make: ABB
Model code: MS116-32
Series: MS116
Rated current: 25 ~ 32 A
No. of Phases: 1, 3

Additional info:

An electromechanical protection device for the main circuit mainly used to switch motors manually ON/OFF and protect them fuseless against short-circuits, overloads and phase failures Overload protection – trip class 10 Phase loss sensitivity Disconnect function Temperature compensation from -25 … +55 °C Adjustable current setting for overload protection Suitable for three- and single-phase applications Trip-free mechanism Clear switch position indication ON/OFF/TRIP

Contact manufacturer Contact manufacturer Datasheet Datasheet

Make	ABB
Manufacturer	ABB
Category	Motors and Electrical Equipment>Motor starters
Model code	MS116-32
Series	MS116
Rated current	25 ~ 32 A
No. of Phases	1, 3
Power rating	2 / 5 / 10 / 20 / 25 HP
Rated Voltage	690 V AC
Protection	IP20 / IP10
Standard	IEC/EN, UL, CSA
Weight	0.310 Kg
Depth	85.6 mm
Height	90 mm
Width	45 mm
Operating Temperature	-25 ~ 55 °C
Additional info	An electromechanical protection device for the main circuit mainly used to switch motors manually ON/OFF and protect them fuseless against short-circuits, overloads and phase failures Overload protection – trip class 10 Phase loss sensitivity Disconnect function Temperature compensation from -25 … +55 °C Adjustable current setting for overload protection Suitable for three- and single-phase applications Trip-free mechanism Clear switch position indication ON/OFF/TRIP
