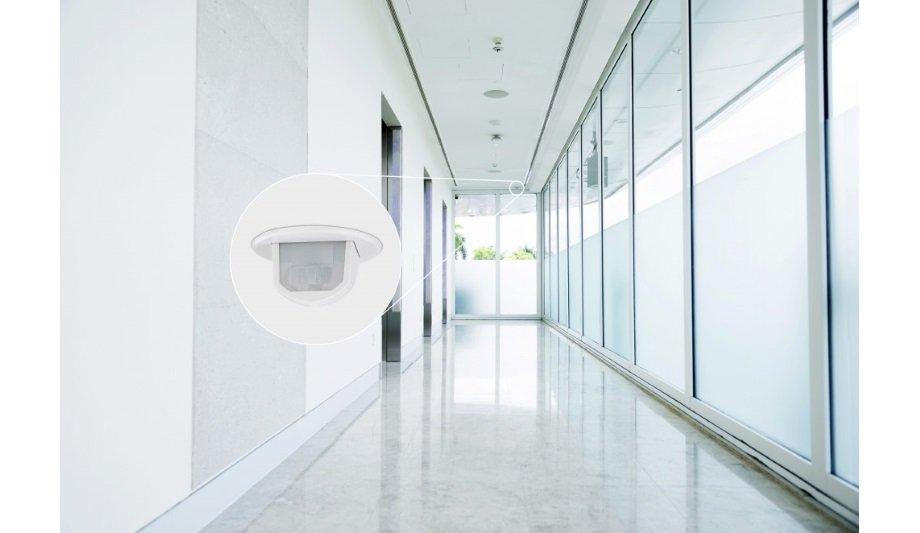

Ideal for corridor and aisle applications, the new GENB-IR from lighting control expert CP Electronics is a long-range, narrow beam presence detector that provides savings in installation time and costs.
Part of the popular green-i range, the GENB-IR PIR presence detector uses an adjustable PIR ‘curtain style’ lens designed for longer range detection of movement and a head that can be adjusted to any angle between 0 – 90 degrees to create the required detection pattern.
Narrow detection pattern
The low-profile detector head also locks into position to prevent tampering
The low-profile detector head also locks into position to prevent tampering. These directional PIRs are ideal for mounting in corridors and low bay aisle applications where a long narrow detection pattern is required.
This IP40 rated PIR sensor can be easily set up, post-installation, with the handy, user-friendly GEFL-HS infrared handset that is available to purchase separately, making set up fast and convenient.
GENB-IR PIR presence detector
The time delay from 10 seconds to 30 minutes and lux settings can also be set using the GEFL-HS handset.
The GENB-IR allows the control of luminaires in corridors or aisles with a smaller number of detectors, saving time and cost, making it perfect for use in narrow and/or deep section spaces where a long, narrow beam is needed, for example, educational institutions, hospitality, healthcare, residential apartments, and offices.
