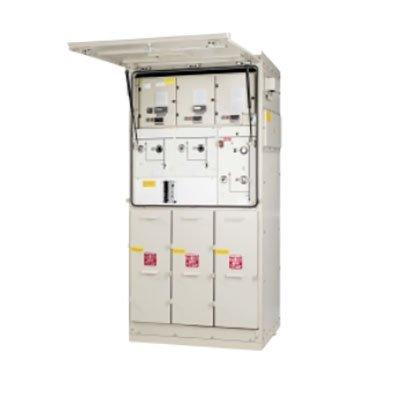

Schneider Electric FBX2RC1612A01WOC1O Gas-Insulated Ring Main Unit up to 24 kV

Technical Specification

Features:

Make: Schneider Electric
Model code: FBX2RC1612A01WOC1O
Series: FBX
Type: Gas insulated switchboard
Max. Voltage: 12 kV

Additional info:

SF6-insulated switchgear for secondary distribution network SF6 switch-disconnector Protection through fuse combination or vacuum circuit-breaker Two versions : FBX-C (Compact), FBX-E (Extensible) Compliant with IEC 62271-200 Rated Voltage: 12 / 17.5 / 24 kV Bus-bar Rated Current: 630 A Feeder Rated Current: 630 A Rated Short Time Withstand Current : up to 21 kA 3s (up to 25 kA 1s for 12 kV) Internal Arc Containment : up to 25 kA 1s Dimensions W x H x D in mm: 2 switch-disconnectors + circuit-breaker or fuse protection functions: 1000 x 1380 x 750 Option : can be remotely controlled and monitored through a RCX-ITI remote terminal

Contact manufacturer Contact manufacturer

Datasheet Datasheet

Make	Schneider Electric
Manufacturer	Schneider Electric
Category	Transmission and Distribution>Switchgears
Model code	FBX2RC1612A01WOC1O
Series	FBX
Type	Gas insulated switchboard
Max. Voltage	12 kV
Max. Current	630 A
Frequency	50 Hz
Standards	IEC 62271-200, IEC 60694, IEC 62271-100, IEC 62271-102, IEC 62271-103
Protection	IK07
Depth	890
Width	870
Height	1965
Weight	360 Kg
Additional info	SF6-insulated switchgear for secondary distribution network SF6 switch-disconnector Protection through fuse combination or vacuum circuit-breaker Two versions : FBX-C (Compact), FBX-E (Extensible) Compliant with IEC 62271-200 Rated Voltage: 12 / 17.5 / 24 kV Bus-bar Rated Current: 630 A Feeder Rated Current: 630 A Rated Short Time Withstand Current : up to 21 kA 3s (up to 25 kA 1s for 12 kV) Internal Arc Containment : up to 25 kA 1s Dimensions W x H x D in mm: 2 switch-disconnectors + circuit-breaker or fuse protection functions: 1000 x 1380 x 750 Option : can be remotely controlled and monitored through a RCX-ITI remote terminal
