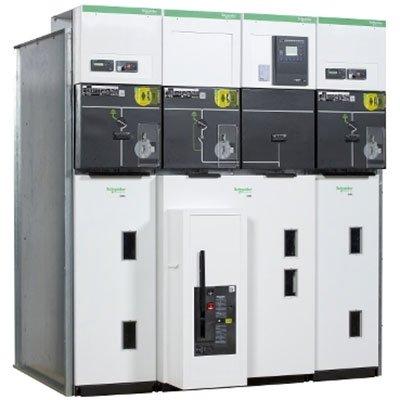

Schneider Electric FSMOFDCORONA Secondary Air Insulated Switchgear

Technical Specification

Features:

Make: Schneider Electric
Model code: FSMOFDCORONA

Additional info:

Comprehensive range composed of metal-enclosed switchgear and controlgear modular units up to 24 kV, easily adaptable to your specific requirements: Containing fixed or withdrawable circuit breaker, using SF6 or vacuum breaking technology, switch-disconnector, and contactor Rated current 400, 630, and 1250 A - Short-circuit current up to 25 kA Internal arc withstand: 12,5 kA/1s and 16 kA/1s, IAC: A-FL and A-FLR. Additional internal arc withstand for 20 kA/1s, IAC A-FL and A-FLR upwards exhaust Control, monitoring, and protection devices providing protection of your installations, continuity of electrical supply, and reducing downtime: Sepam and VIP relays Easergy T200S telecontrol interface Flair fault passage indicator

Contact manufacturer Contact manufacturer

Datasheet Datasheet

Make	Schneider Electric
Manufacturer	Schneider Electric
Category	Transmission and Distribution>Switchgears
Model code	FSMOFDCORONA
Additional info	Comprehensive range composed of metal-enclosed switchgear and controlgear modular units up to 24 kV, easily adaptable to your specific requirements: Containing fixed or withdrawable circuit breaker, using SF6 or vacuum breaking technology, switch-disconnector, and contactor Rated current 400, 630, and 1250 A - Short-circuit current up to 25 kA Internal arc withstand: 12,5 kA/1s and 16 kA/1s, IAC: A-FL and A-FLR. Additional internal arc withstand for 20 kA/1s, IAC A-FL and A-FLR upwards exhaust Control, monitoring, and protection devices providing protection of your installations, continuity of electrical supply, and reducing downtime: Sepam and VIP relays Easergy T200S telecontrol interface Flair fault passage indicator
