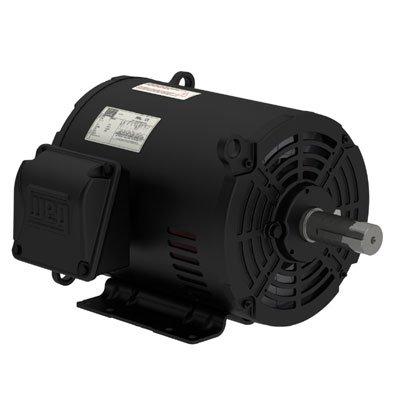

WEG 12707482 Three-Phase Open Drip Proof General Purpose Motor
Technical Specification
Features:
- Make: WEG
- Model code: 12707482
- Series: W01 Rolled Steel
- Power output: 25 HP
- Frame: 254/6T
Additional info:
Three phase induction motor - squirrel cage 25 HP, 230/460 V Has good thermal performance and easy installation and maintenance With steel plate frame and aluminum flange, the motor provides torque and durability for the severest applications
Read more| Make | WEG |
|---|---|
| Manufacturer | WEG |
| Category | Motors and Electrical Equipment>Motors |
| Model code | 12707482 |
| Series | W01 Rolled Steel |
| Power output | 25 HP |
| Frame | 254/6T |
| No. of Phases | 3 |
| Speed | 3530 RPM |
| Frequency | 60 Hz |
| Voltage | 230/460 V |
| Construction | Rolled Steel |
| Enclosure | IC01 - Open Drip Proof |
| Operating Temperature | -20 ~ 40 °C |
| Weight | 82.55 Kg |
| Standard | NEMA MG-1 |
| Mount | Foot |
| Additional info |
|
| Download PDF version Download PDF version | |
