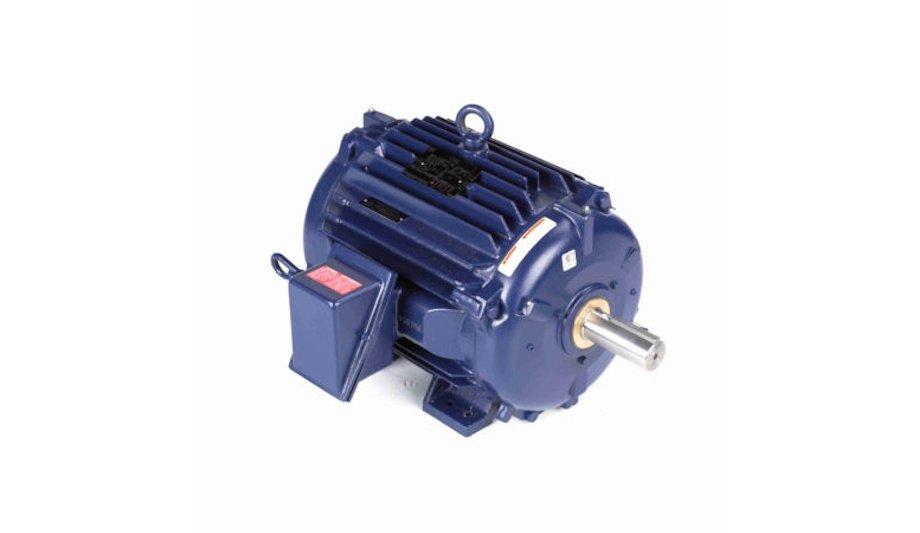

When the temperatures are climbing, they need a reliable cooling tower motor to keep the cooling towers running. Dreisilker stands behind the Leeson Totally Enclosed Air Open (TEAO) Cooling Tower Motors.
Through many summers, the Leeson TEAO Cooling Tower motors have proven their quality and reliability for the customers.
Features of the Leeson TEAO Tower Motors
There are many features of the Leeson TEAO Tower Motors that make an exceptional cooling tower motor, including:
- Designed for shaft up mounting: The Leeson motors are known for being able to fit in most applications.
- Shaft grounding rings preinstalled: Having shaft grounding rings is added protection for the motor’s bearings. To learn more about shaft grounding rings, read the blog about Aegis Shaft Grounding Rings
- Epoxy Painted: Leeson electric motors have the most durable paint in order to withstand the harsh environment that they are found in.
- Complete Cast Iron Construction: This allows for rigidity and reduced vibration in the motor, which can increase the service life of the motor.
- Severe Duty: The internal components, such as the rotor and the stator, are severe-duty treated so that they can withstand harsh environments.
- Inverter Duty: The motors are inverter duty, allowing them to work with Variable Frequency Drives.
Some other premium features include:
- Made in the USA
- 3 Year warranty
- 10:1 constant and variable torque rated
- Inpro shaft seal protected
- Class F insulation
- F-1/F-2 Capable
- Extra nameplate with CE for external mounting
- Brass T Drain installed (both ends at 6:00)
- Re-greasable bearings
- 1.15 S.F. under sine wave power
Installation and removal of a cooling tower motor
When they discuss options with the customers, they always recommend Cooling Tower Duty (CTD) motors over the misapplied Open Drip Proof (ODP). The CTD motors can more completely protect the motor from the harsh environment compared to ODP motors.
They want added protection for the cooling tower motors, considering that in some cases, the installation and removal of a cooling tower motor is extremely difficult and labor-intensive.
During the summer months, they stock 3–100 HP TEAO Cooling Tower motors. For higher HP needs, there is stock readily available at a nearby distribution warehouse. If they have a cooling tower motor go down, consider the high-quality Leeson TEAO Cooling Tower Motor.
