LOVATO Electric’s range of fuse holders has been expanded to cover photovoltaic applications up to 1500 VDC. There is also a new version with a pilot light to indicate when the fuse has tripped.
The fuse holders are designed for 35 mm DIN rail mounting. gPV class fuses can be used in applications up to 20A (10x85 mm) and 32A (14x85 mm).

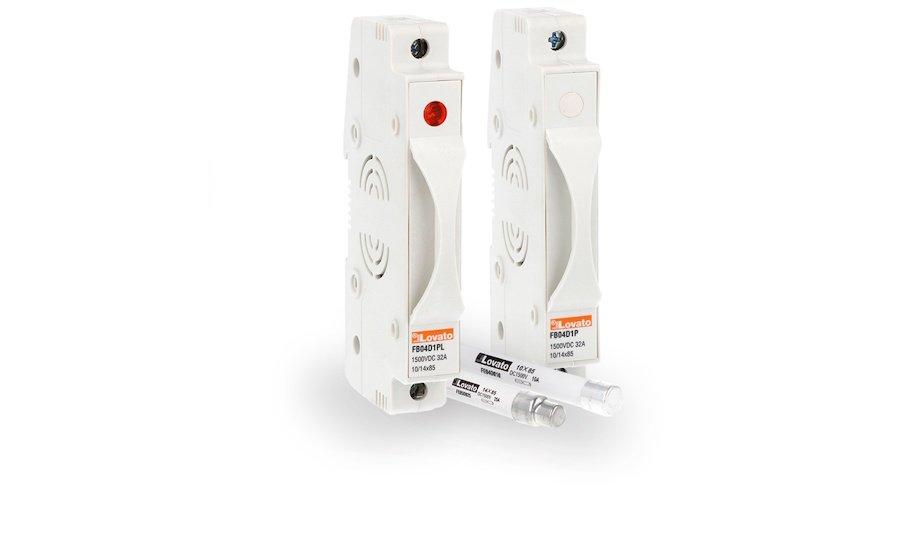

Fuse holders FB04D1P–FB04D1PL
Operational characteristics:
- IEC rated voltage Un: 1500 VDC
- IEC rated current In: 32 A
- IEC utilization category: DC20B 1500 VDC
- Suitable for IEC fuse class: gPV
- IEC degree of protection: IP20.
Fuses FE04D… FE05D…
- Type gPV fuses complying with IEC/EN 60269-6, which requires specific characteristics for PV uses.
- For use with fuse holders for photovoltaic applications.
Operational characteristics:
- IEC rated voltage Un: 1500 VDC
- IEC rated current
- In: 6-20 A for 10x85 mm version
- In: 20-32 A for 14x85 mm version
- Suitable for IEC fuse class: gPV
