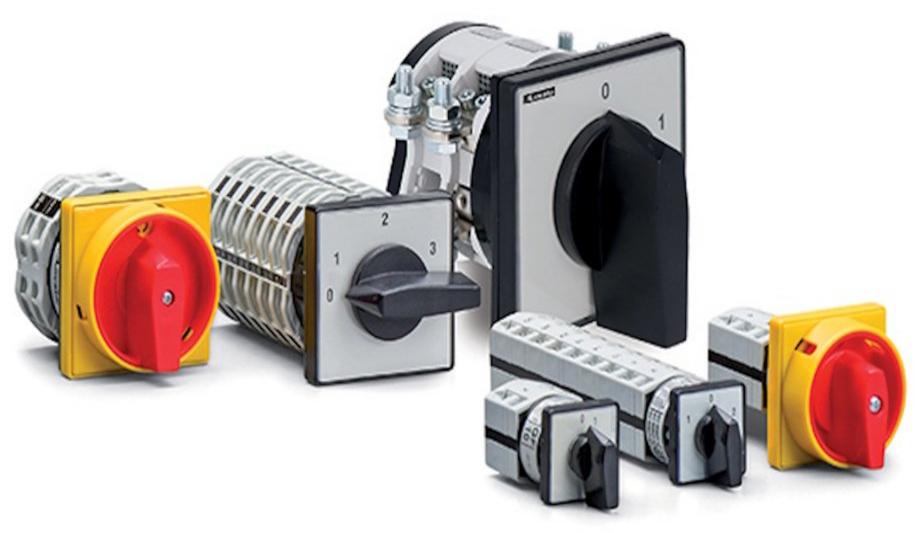

With a uniquely compact design and robust construction, they are ideal for switching, circuit breaking, and control applications. They are available in a wide range of variants and configurations to satisfy any application requirement, from the most conventional to the most unusual.
All variants offer a wide range of options and up to 12 switching positions. In addition to the existing 7GN and GX series, LOVATO Electric has now expanded its offer with the GF, GNA20 and GN series.
LOVATO Electric cam switch
The GF series is by far the most compact solution. It is available in two ratings, for applications up to 20A. Each element has two contacts, and up to 12 elements can be combined, for a total of 24 contacts.
The GF series has the smallest side frame of any LOVATO Electric cam switch and thanks to the profile of the contact elements, they can be installed side-by-side in an extremely compact configuration.
GF series cam switches
The terminals are located at the top and/or at the bottom of the switch, so that GF series cam switches
It is ideal for applications demanding special switching schemes with an extremely compact form factor, like small machines and mosaic panels.
It also offers a highly practical wiring solution, enabling the user to install the product quickly with just a screwdriver, even in restricted spaces; the terminals are located at the top and/or at the bottom of the switch, so that GF series cam switches can be installed right next to each other.
GNA20 series of cam switches
If the application demands a shallow solution or a special circuit switching scheme, the best solution for applications up to 20A is the GNA20 series of cam switches. They are designed for installation in shallow panels, where the switching scheme requires a large number of contacts.
This device offers four contacts on each element, so with a maximum of 12 elements, it is possible to have a total of 48 contacts on a single switch. Both the GF and GNA20 series have an IP20 degree of protection for the terminals.
Launch of the GN series
The launch of the GN series is born from the need to offer a solution for high power applications
The launch of the GN series, on the other hand, is born from the need to offer a solution for high power applications, with the requirement to switch loads up to 2000A.
cURus certified versions are available in the 200A and 315A sizes. This series also offers up to 12 selectable elements, for a total of 24 contacts.
LOVATO Electric cam switches
The new series is available in different variants, depending on the type of installation, with door mounting, for front mounting with or without front plate, for DIN rail mounting, etc.
All LOVATO Electric cam switches can be customised with standard or special connection schemes to the client’s specification.
