LOVATO Electric presents two major new solutions for energy management and monitoring: a new generation of power analyzer with a widescreen LCD color display and EASY BRANCH.
The innovative multi-circuit measurement system is designed for quick, easy, and cabling of electrical panels with multiple measurement points. These two new solutions herald a new approach to energy management: a totally connected, centralized and greatly simplified system.
DMG series of power analyzers
The measurements are displayed as waveform graphics, polar diagrams and harmonic spectra up

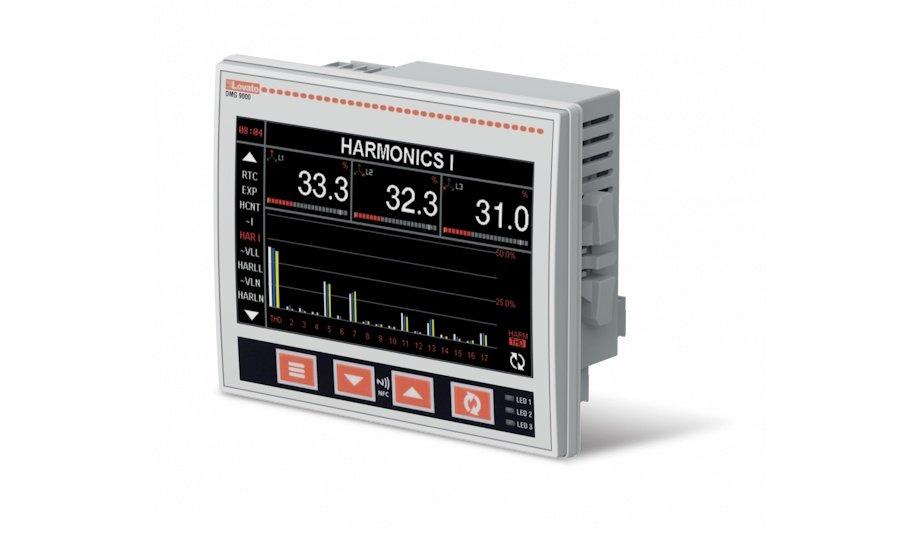

The heart of the system is the new DMG series of power analyzers. The large widescreen LCD color display (4.3″) ensures clear, legible reading of mains analysis parameters, all while maintaining the classic drilling template (92x92mm) to ensure perfect compatibility with standard front panel solutions.
The measurements are displayed as waveform graphics, polar diagrams and harmonic spectra up to the 63rd order, thus offering everything needed to analyze the condition of the system.
Standout features of the DMG series
One of the standout features of the DMG series is intelligent programming. The NFC technology makes it possible to configure and set parameters, even when the device is not powered: just download the LOVATO NFC App to the smart device from the Google Play Store (Android) or the App Store (iOS). All parameters can be configured and set with our user-friendly programming software.
With their wide range of communications options, DMG power analyzers can be integrated into energy supervision systems to provide exhaustive analysis of all vectors.
Available with integrated RS485 and Ethernet ports, these new instruments can be expanded with up to 3 EXP modules to add supplementary inputs, outputs and communications ports.
International standards for measurement instrumentation
All measurements are extremely accurate and certified for compliance with the international standards
The option to combine digital and analog inputs enables field parameters like gas and water consumption, fluid tank levels, temperature, pressure, and many others to be integrated into the system, thus providing full spectrum energy management.
All measurements are extremely accurate and certified for compliance with the international standards for measurement instrumentation, including: IEC/EN/BS 62053-22 (class 0.5s), IEC/EN/BS 62053-24 (class 1) and IEC/EN/BS 61557-12 (class 0.5).
DMG8000 and DMG9000 models
DMG power analyzers, with their integrated PLC logic, also offer simple timed automation as well as the logical combination of setpoints and digital inputs to control signal outputs, among others.
Finally, the DMG8000 and DMG9000 models can also act as web servers, for:
- setting all parameters not just from the enclosure’s front panel, but also from any browser;
- saving measured data to their internal memory;
- representing measured values in graphic and tabulated form.
This innovative product also features: programmable front panel LEDs, 10 interface languages, IP65 protection rating, and an optical port on the back panel for updating its firmware and connecting to the programming software.
