Circuit breakers play a crucial role in modern electrical systems, providing essential protection against potential overloads and short circuits. These devices serve as a primary defense against electrical fires. Certain situations, however, demand remote tripping of circuit breakers for operational purposes, such as controlling machinery from a different location.
In emergencies, such as fires, personnel can cut power to a building without physically accessing the breaker. This action can also occur automatically if a shunt trip receives signals from a fire alarm or security system.
Recognizing this important safety feature, NOARK Electric has expanded its line of shunt trips for Molded Case Circuit Breakers (MCCBs) to include 12Vdc shunt trips, tailored for extra low voltage circuits.
Shunt Trip - Internal Accessory for Circuit Breakers

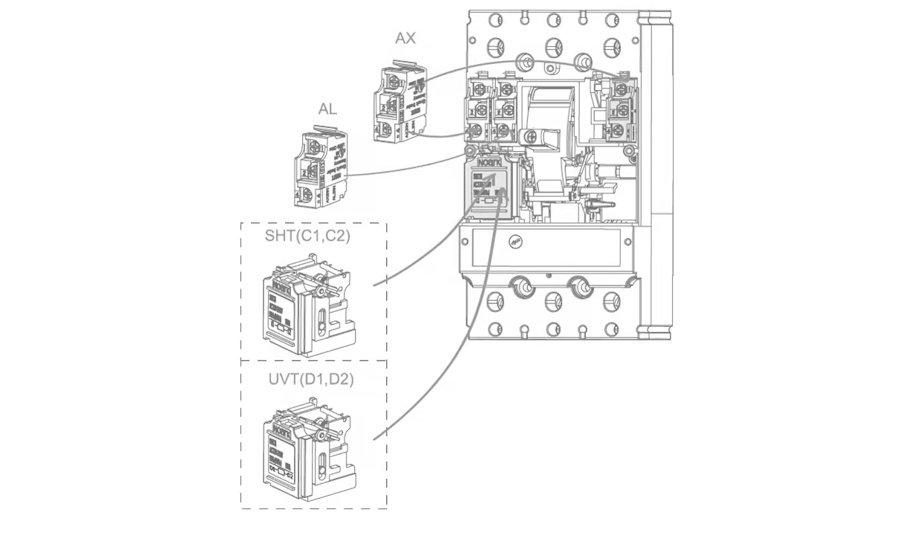

Circuit breakers house both internal and external accessories. A shunt trip, installed within the circuit breaker's frame, serves as an internal accessory.
Other internal components include Undervoltage release, Auxiliary contacts, and Alarm contacts. Once fitted inside the breaker, the shunt trip can initiate the circuit breaker's opening by receiving remote signals through connected wires.
Advantages of Shunt Trip Coil MCCB
NOARK Electric emphasizes safety and efficiency by offering shunt trips for various MCCB models
NOARK Electric emphasizes safety and efficiency by offering shunt trips for various MCCB models.
These shunt trip units enhance safety and operational versatility by allowing breakers to trip remotely or automatically through a signaling safety circuit, especially during emergencies.
The voltage control for Shunt Release Trip (SHT) units spans 110 to 500 Vac and 12 to 24 Vdc, with an automatic opening time of 10 ms to 60 ms, ensuring rapid response to potential hazards.
Safeguarding Electrical Systems with NOARK Electric
Maintaining the integrity of electrical systems largely depends on the reliable functioning of circuit breakers. Their operation, though sometimes inconvenient when they trip, is a vital preventive measure against serious electrical issues.
By understanding the reasons behind tripping and managing these events responsibly, electrical systems can operate safely and efficiently. For more information on circuit breakers and their accessories, contact a NOARK Electric representative to explore how these solutions can enhance the safety and reliability of electrical systems.
Circuit breakers are an essential component of any modern electrical system. Designed to protect the home or business from potential overloads or short circuits, these devices are the first line of defense against electrical fires. There are, however, situations where remote tripping of the circuit breaker may be required.
It could be for operational reasons, for example, being able to turn off machinery from the switch room, which is not in the same location as the machine.
Fire alarm or security system
In emergency situations, for example, in a fire outbreak, personnel can shut down power to a building without going in front of the breaker to do that. This can also be done automatically when the shunt trip receives a signal from the fire alarm or security system.
This is an important safety consideration, and at NOARK, they have just extended the line of Shunt Trips for Molded Case Circuit Breakers with the addition of 12Vdc shunt trips, which are particularly suited for extra low voltage circuits.
Shunt Trip as an Internal Accessory
Circuit breakers generally have two types of accessories – internal and external. A shunt trip is an example of an internal accessory of the circuit breaker since it is mounted or installed inside the circuit breaker’s frame or body.
Other examples of internal accessories under the Molded Case Circuit Breaker’s family are Undervoltage release, Auxiliary contacts, Alarm contacts, etc. Once installed inside the circuit breaker, the shunt trip can receive remote signals by means of the connected wires and trigger the opening of the circuit breaker.
Shunt Trip Coil MCCB Benefits
At NOARK Electric, they prioritize safety and efficiency for the clients, which is why they offer shunt trips for a series of molded case circuit breakers (MCCBs). Noark Electric’s shunt trip units are ideal for safety considerations and operational flexibility.
This is because adding a NOARK MCCB shunt trip coil accessory to a circuit breaker allows for the breaker to trip and open remotely or automatically when connected to a signaling safety circuit. in the event of an emergency.
The voltage control for the Shunt Release Trip (SHT) units ranges from 110 to 500 Vac and 12 to 24 Vdc. NOARK’s shunt trip units have an automatic interrupting opening time between 10 ms and 60 ms, providing reliable and immediate trips to mitigate disasters.
Prioritize Power System Safety with NOARK Electric
Circuit breakers are vital for maintaining the safety of the electrical system. While it can be frustrating when they trip, remember that it’s a proactive and protective measure to prevent more serious electrical issues.
By understanding why circuit breakers trip and taking steps to safely manage these events, they can ensure a safe and efficient electrical system. Contact a NOARK Electric representative today to learn more about the Circuit breakers and accessories and how they can benefit of electrical systems.
