After a motor is rewound, the windings must be further insulated with resin or varnish. This insulation protects the windings from contamination, shorting electrically, and also makes the windings more mechanically rigid.
- What are the different types of varnishing methods?
There are four types of varnishing methods that they will describe below: Dip and Bake Epoxy Varnishing, Trickle Varnishing, Vacuum Pressure Impregnation, and Ultra-Sealed Winding.
Dip and Bake Varnishing Technique
Dip and Bake is a standard varnishing technique where the motor windings are dipped into a varnish tank
Dip and Bake is a standard varnishing technique where the motor windings are dipped into a varnish tank and then set to cure in an oven. Typically, a new motor winding should be dipped twice (double dip and bake) to ensure the varnish fully covers the windings.
Many repair shops do not allow the windings to cool once they are cured in the oven after the first dip and before the motor is dipped a second time. Because the windings are still hot during the second dip, the varnish becomes more viscous and runs off the motor easily. This results in a less effective second dip of varnish.
Because they want to ensure adequate varnish coverage, Dreisilker’s quality standards denote that the windings must be cool before the second dip. The varnish is Class N and Hermetic rated, meaning the varnished used can withstand higher temperatures and is fit for compressors (respectively).
Trickle Varnishing Technique
Trickle varnishing involves winding the material connected to a rotating table and electrical wires. Using electrical resistance, the winding gets heated while spinning. Once at temperature, a tiny stream of varnish is trickled onto the winding head. The varnish follows the wire into the entirety of the slot, eliminating chances for partial discharge in random windings.
Once fully saturated, the current is increased in the windings, resulting in the varnish curing while on the machine. This process is faster and better than the traditional dip and bake process because it cures on the machine-making it ideal for emergency repairs.
Vacuum Pressure Impregnation Technique
Vacuum Pressure Impregnation (VPI) utilizes a vacuum pressure tank filled with varnish
Vacuum Pressure Impregnation (VPI) utilizes a vacuum pressure tank filled with varnish to fully impregnate motor windings and insulation with resin or varnish.
At Dreisilker, they preheat their windings, place the windings in the 10 ft. diameter tank, draw a vacuum, fill the tank until the resin or varnish covers all of the winding, then pressurize the tank.
These cycles are all set to various times and capacitance is monitored to determine the resin or varnish fill is acceptable. This process is typically used on medium voltage motors and form coil systems because traditional varnishing methods will not fully saturate the motor coils and their insulation tapes with varnish. The VPI method is the most time-consuming process.

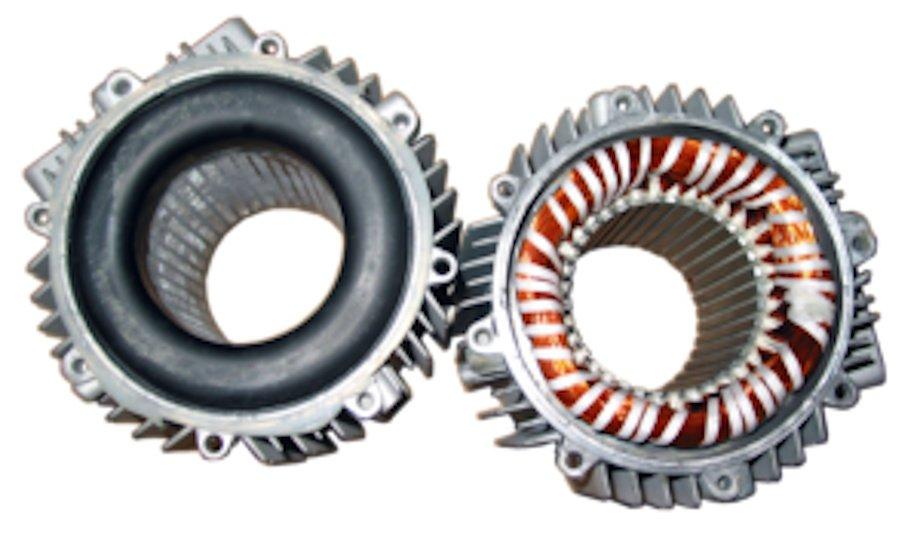

Ultra Seal Winding Technique
Ultra-Seal Winding is an alternative method of insulating a motor’s windings. Ultra-Sealed windings are completely impregnated and seals the coils with high molecular weight thermoset polymer resin.
This allows for total protection against moisture, contaminants, and more efficient cooling. They recommend Ultra-Seal Windings for motors found in extreme environments, where contamination is likely.
Why is Varnishing Important?
Varnishing a motor winding protects the winding from contamination. Furthermore, it can protect the winding from shorting electrically and keeps the windings mechanically rigid.
It’s important to understand which method would be best for the application. That is why the customer service representatives are trained in the different benefits that come with each method.
