Compact and competitively priced, the new PSE1 series single-phase power supplies are the perfect solution for the supply of loads and equipment installed in panels with limited spaces.
Their ultra-compact housing makes them suitable to be installed in small enclosures, to supply electromechanical and electronic devices with DC control, such as contactors, timer relays, sensors, PLCs, DC motors, displays, SSRs (solid state relays), and other equipment normally found in automation systems.
Five electrical power sizes
On the front, there is a potentiometer for the fine adjustment of the output voltage and an LED for power-on signalling
35 mm DIN rail compatible (IEC/EN/BS 60715), PSE1 switching power supplies have single-phase multivoltage input 100-240 VAC 50/60 Hz and 24 VDC output. The range comprises five electrical power sizes: 30, 50, 72, 100, and 120 W with rated output currents from 1.25 to 5A.
On the front, there is a potentiometer for the fine adjustment of the output voltage and an LED for power-on signalling.

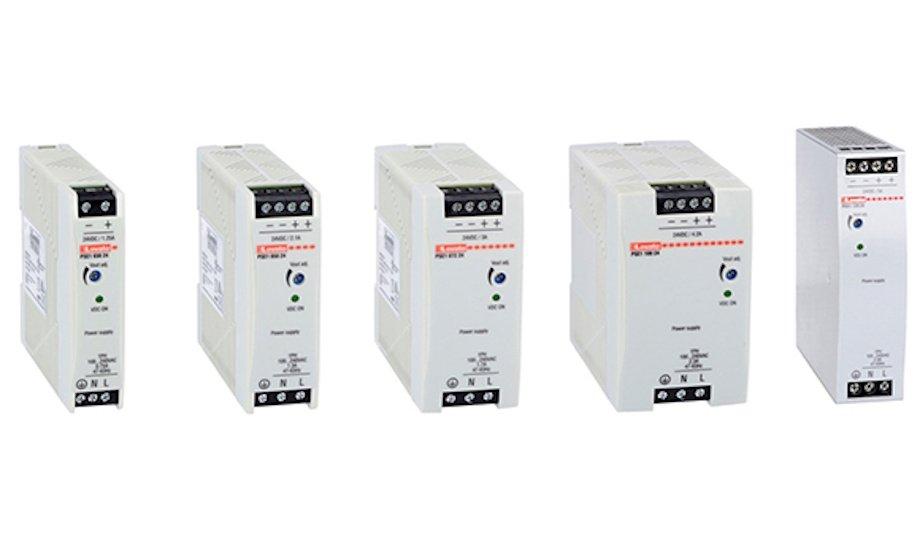

PSE1 power supplies
In addition to their compact dimensions, PSE1 power supplies are characterized by high efficiency, reliability, and safety. They include integrated protection against output short circuit, overload, and input voltage peaks.
The new PSE1 power supplies are cULus, EAC, and RCM certified, and they are compliant with the standards IEC/EN/BS 62368-1, IEC/EN/BS 61000-6-2, IEC/EN/BS 61000-6-3, UL508, and CSA C22.2 no. 107.1.
