Circuit breakers play a vital role in the electrical sector by swiftly halting faulty electric currents to safeguard equipment from costly damage. These devices are designed to meet varying needs and load capacities.
Among the most widely used types are Molded Case Circuit Breakers (MCCBs) and Air Circuit Breakers (ACBs), each offering distinct features that make them preferable for specific installations or applications. Understanding the unique capabilities of MCCBs and ACBs is critical for installers to make informed choices.
Molded Case Circuit Breakers (MCCBs)
Overview
MCCBs are low-voltage circuit breakers that automatically interrupt electric circuits when excess current is detected, thus protecting electrical equipment and wiring from overloads or short circuits.
Components
The primary components of an MCCB include terminals for wire connections, an operating mechanism, and trip units that identify overloads and short circuits. In thermal magnetic breakers, overload protection is managed by a bimetal strip, while a magnetic coil addresses short circuit faults.
Working Principle
Upon detecting a sustained overload or short circuit, the MCCB's trip unit activates its internal mechanism, causing the moving contacts to separate rapidly — typically in under a second. This quick action prevents damage by limiting the fault current.
Air Circuit Breakers (ACBs)
Overview
ACBs are designed for high-voltage systems, using pressurized air or insulating gases to break circuits instantaneously within milliseconds when faults are detected.
Components
An ACB features high-speed moving contacts housed in a dielectric chamber. A pneumatically operated mechanism manages compressed air within an insulated chamber to control the circuit interruptions.
Working Principle
When an electrical fault is identified, the ACB’s trip unit triggers the mechanism to release compressed gas instantaneously. The moving contacts are forced apart, quickly breaking the current flow.

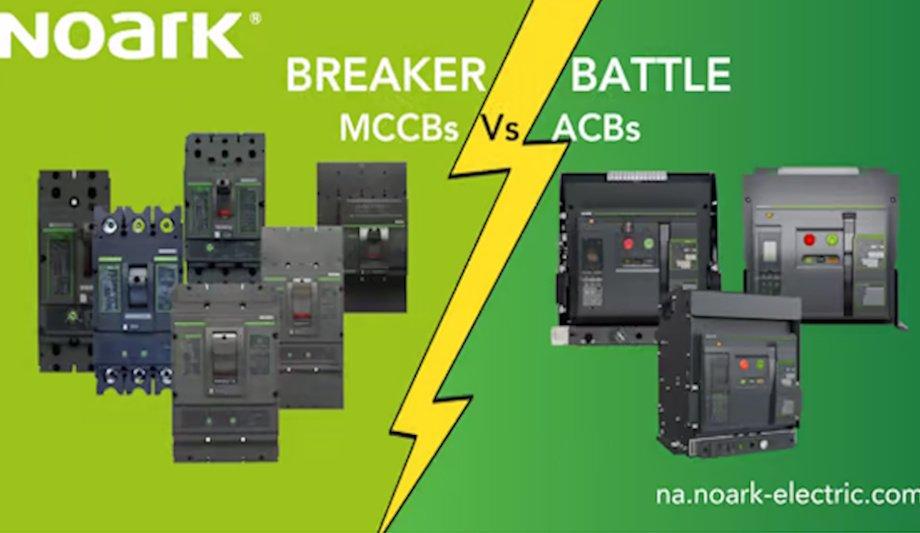

MCCB vs. ACB: Key Differences
Ratings
ACBs are suited for larger loads with ampere ratings up to 6,300A, ideal for industrial settings. In contrast, MCCBs have lower amp ratings, up to 3,200A, making them suitable for residential and commercial applications.
Size
Due to their higher ampere ratings, ACBs are larger to manage heavier electrical loads securely. MCCBs are more compact, fitting easily into residential and smaller commercial panels.
Application
While MCCBs are typically used in homes and smaller facilities for branch circuit protection, ACBs are preferred for large industrial facilities, utility substations, and other high-current applications.
Cost
ACBs typically come at a higher cost due to their complex construction and higher amp ratings, which are common in industrial-grade equipment. MCCBs are generally more affordable.
Maintenance
Maintaining ACBs involves routine servicing of arc chutes, gas tanks, seals, and pneumatic components, which is labor-intensive. Conversely, MCCBs require simpler maintenance, typically involving basic inspections and switch replacements.
Both MCCBs and ACBs are essential for electrical protection. MCCBs cater to distribution and circuit protection needs in commercial and residential settings, while ACBs handle heavy loads and higher voltages in industrial applications. NOARK provides a reliable range of MCCBs and ACBs, adhering to North American standards, with features designed to enhance infrastructure protection.
Circuit breakers serve crucial functions. They rapidly stop faulty electric currents to prevent costly damage to equipment. Their designs differ depending on intended use and load capacities. Two common categories are Molded Case Circuit Breakers and Air Circuit Breakers.
Though each disconnects power during problems, they have unique attributes. These make one preferred over the other for a given installation or application. Therefore, it’s useful for installers to know the features and differences in ACBs and MCCBs to select the right solution.
Molded Case Circuit Breakers (MCCBs)
An MCCB is a low-voltage circuit breaker. It’s used to protect wiring and electrical equipment. It interrupts electric circuits automatically when excess current is detected. In this way, it prevents equipment damage from overloads or short circuits.
Key components of an MCCB include terminals that connect wires, an operating mechanism, and trip units that sense overload and short circuit faults. For thermal magnetic breakers, the trip function uses two mechanisms – a bimetal strip for overload protection and a magnetic coil mechanism for short circuit faults.
When a trip unit of a molded case circuit breaker detects a sustained overload or short circuit downline, it activates the internal operating mechanism. This causes the moving contacts inside the MCCB to rapidly separate. It occurs in less than one second, interrupting the electric current passing through. This fast interruption limits the fault current that is let through, preventing permanent damage to wiring or devices on the protected circuit.
Air Circuit Breakers (ACBs)
An ACB is a type of circuit breaker used for protecting higher-voltage systems. It typically employs pressurized air or insulating gases to instantly interrupt tripping circuits within milliseconds.
Key components of an air circuit breaker include a set of high-speed moving contacts. These are enclosed in a dielectric chamber. The contacts are pneumatically operated by a mechanism. The mechanism controls compressed air, which is usually kept in an insulated vessel.
When an electrical fault is detected, the trip unit of the ACB instantly triggers the operating mechanism. This prompts the controlled release of stored compressed gas. The blast of gas forces the moving contacts apart. It breaks the current flow through the ACB. Disconnection happens exceedingly fast due to the swift discharge of gas, within milliseconds.
MCCB vs ACB: Key Differences
MCCBs and ACBs serve important functions but have some key distinguishing characteristics in their design and application. Key attributes that highlight the differences include:
ACBs typically have higher ampere ratings. They can go up to 6,300A and are suitable for larger loads in industrial settings. MCCBs are rated for relatively lower amps, generally up to 3,200A. They are used in residential and commercial sites for distribution panels and secondary circuit protection.
Size is another major MCCB vs ACB distinction. Due to their higher ratings, ACBs have larger sizes and dimensions. This is to ensure they safely handle heavier electrical loads over long periods. MCCBs are more compactly designed and smaller to conveniently fit in residential and smaller commercial electrical panels.
MCCBs are generally used in distribution panels located in homes, smaller facilities, and retail buildings for branch circuit protection. ACBs are usually found in large industrial facilities. This includes factories and manufacturing plants, utility substations, and other high-current applications requiring primary protection.
Cost is another major MCCB vs ACB difference. ACBs tend to cost more than comparably rated MCCBs. This is due to their more intricate and complex construction. Their higher ampere ratings also contribute to increased prices in industrial and utility-grade equipment.
ACB maintenance requires periodic servicing of arc chutes, gas tanks, seals, and pneumatic components. This is more labor-intensive. MCCB maintenance is simpler as it operates mechanically without gases. So, these circuit breakers require only basic inspections and switch replacement if faulty.
Conclusion
Both MCCBs and ACBs are Winners! Serving crucial roles in electrical protection. MCCBs are suitable for distribution and circuit protection in commercial/residential applications. ACBs are designed for heavy-load industrial applications handling higher voltages and currents.
At NOARK, they offer reliable MCCBs and ACBs after rigorous testing that meet North American standards. Products include advanced features and components to effectively protect the infrastructure from faults. They aim to simplify power protection through a diverse product portfolio.
